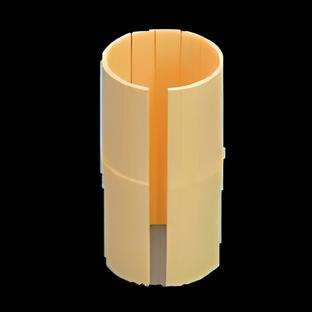

Вкладыши CPGL-11

Код изделия

d1 [мм]

Допуск [мм]

d2 [мм]

b1 [мм]

t

[мм]

t1

[мм]

Z

[мм]

r
[-0.1/0.2]

[мм]

Вес [г]

CPGL-11-10

10

+0.030/+0.070

12

28

0.8

0.8

2.5

3

1.3

CPGL-11-12

12

+0.030/+0.070

14

31

0.8

1

3

3

1.6

CPGL-11-16

16

+0.030/+0.070

18

35

0.8

1.2

3.5

3.5

2.2

CPGL-11-20

20

+0.030/+0.070

23

44

0.8

1.2

3.5

5

5

CPGL-11-25

25

+0.030/+0.070

28

57

0.8

1.5

4

5

8

CPGL-11-30

30

+0.040/+0.085

34

67

0.8

1.5

4

5

15.1

CPGL-11-40

40

+0.040/+0.085

44

79

1.3

2

5

6

25.6

CPGL-11-50

50

+0.050/+0.100

55

99

1.3

2

6

7

50.6

Код изделия

Вал [мм]

D

[мм]

B

[мм]

r+0.5

[мм]

t+0.05

[мм]

Z+0.2

[мм]

CPGL-11-10

10

12

29

3

0.8

2.6

CPGL-11-12

12

14

32

3

1

3.1

CPGL-11-16

16

18

36

3.5

1.2

3.6

CPGL-11-20

20

23

45

5

1.2

3.6

CPGL-11-25

25

28

58

5

1.5

4.1

CPGL-11-30

30

34

68

5

1.5

4.1

CPGL-11-40

40

44

80

6

2

5.1

CPGL-11-50

50

55

100

7

2

6.1
